| Parameter | Value |
|---|---|
| Model | ECI100-8A |
| Printing color | 8 |
| Printing speed | 150-200pcs/min |
| Max. Printing height | 110mm |
| Min. Printing height | 20mm |
| Max. printing area diameter | 100mm |
| Min. printing area diameter | 50mm |
| Max. cup diameter | 110mm |
| Min. cup diameter | 65mm |
| Printing roller diameter | 100mm |
| Printing plate diameter | 600mm |
| Printing angle | 3°-13° |
| Cup mould roller number | 8pcs |
| Air Pressure | 6-8Pa |
| UV dry rate power | 6KW |
| Voltage | 380V 50 HZ/3p 4Line |
| Dimension | L4500*W2500*H2200mm |
| Weight | 6T |
The press operates automatically, handling cup loading and unloading without manual intervention. It features automatic counting and defect detection, significantly boosting production efficiency while reducing labor costs and production time.
Equipped with an 8-color printing system, the machine can simultaneously apply eight different ink colors, meeting diverse customer demands for vibrant and multicolored printing effects.
Utilizing advanced printing technology and equipment, the press ensures high-precision printing and stable operation, delivering consistent, high-quality output and enhancing overall production efficiency.
The machine is adaptable to curved objects of various types and sizes. Its adjustable parameters for size, height, and angle make it highly versatile and suitable for a wide range of printing applications.
The 8-color printing press is equipped with an intelligent maintenance system, enabling quick and hassle-free equipment servicing and upkeep.

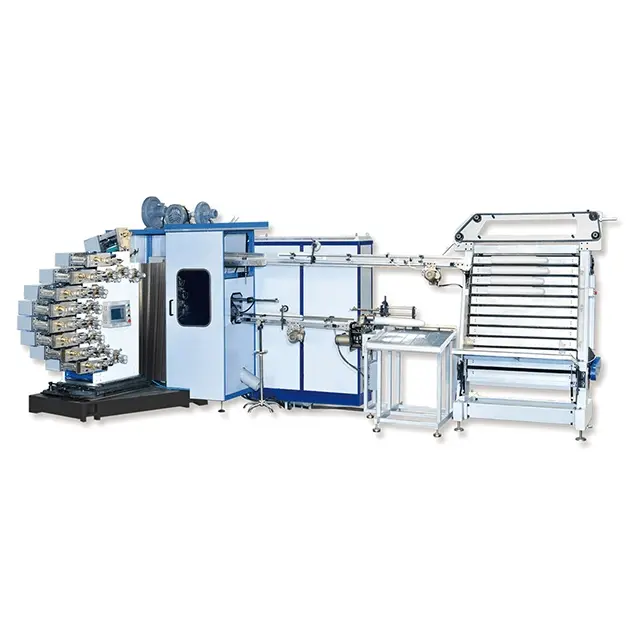

The ECI-8A Automatic Curved Cup Printing Machine is a specialized printing device designed for printing on cylindrical or conical surfaces, such as cups, bottles, and other curved objects. Its versatile applications span across various industries, including:
This 8-color automatic printing machine excels in printing on a wide range of disposable plastic containers. With its high-speed printing capabilities, it efficiently handles large volumes of cups, bowls, and similar products, making it an ideal choice for the packaging sector.
The machine is well-suited for printing on promotional plastic items. It delivers vibrant colors and high-precision printing, enabling a variety of printing effects that cater to personalized customer demands. It also serves as an excellent tool for product promotion within the printing industry.
The ECI-8A is used for printing on electronic product casings, panels, logos, and other components. It achieves detailed printing results, enhancing the product's aesthetic appeal and bolstering brand image.
The cosmetics sector requires clear, high-quality printing for product labels and logos. The ECI-8A's high-precision 8-color printing capability addresses these needs effectively, ensuring crisp and accurate prints.
The machine is also ideal for printing on toys, gaming products, and other curved items. It produces vivid, multi-colored prints that enhance product attractiveness and market competitiveness.
ECI-8A automatic surface offset press operation steps are as follows:
Turn on the power supply to the printing press, ensuring the machine is in proper working condition.
Verify that all components of the printing press are in good condition, including the print head, feeding system, ink transfer mechanism, corona device, and other critical parts.
Ensure that there is an adequate supply of materials to be printed.
Set and adjust the press parameters, such as color settings, printing speed, and pressure, according to the job requirements.
Load the material to be printed into the conveyor system and adjust its positioning for accurate printing.
Start the printing press. Observe the initial print output and make any necessary fine-tuning adjustments to achieve the desired print quality.
Continuously monitor the printing process to ensure that the output meets the specified quality standards.
After completing the printing tasks, power off the press. Clean all components of the printing press thoroughly to prepare it for future use.
The ECI100-8A has a printing speed of 150 to 200 pieces per minute (pcs/min), making it highly efficient for high-volume production demands.
The machine is equipped with an 8-color printing system, allowing it to apply up to eight different ink colors simultaneously for multicolored designs.
The maximum cup diameter is 110mm, and the minimum cup diameter is 65mm. The machine is highly adjustable to fit various sizes.
It is widely used in the packaging, printing, electronics, cosmetics, and toy industries for printing on disposable containers, casings, panels, labels, and toys.
Yes, the press operates automatically, handling both cup loading and unloading without manual intervention, which helps in saving labor costs and reducing production time.
The machine operates under a voltage of 380V 50 HZ/3p 4Line and has a UV dry rate power of 6KW.
