High-Quality 8 Color Curved Offset Printing Machine Factories, Products

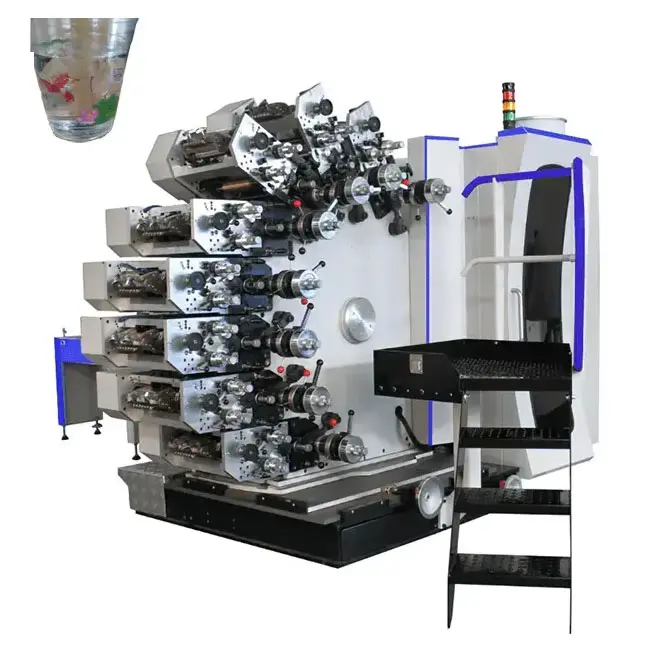

ECI180-8D 8 color large high speed fully automatic curved offset printing machine, this state-of-the-art device aims to revolutionize the cup printing industry. The equipment of this model is self-operated from the start of the machine to the completion of the cup printing. Automatic feeding, automatic printing, automatic detection of broken cups, automatic counting, etc. As a large device, the high printing speed is one of the most obvious features, and its speed can reach 600 per second, of course, it will change according to the size of the cup. With its advanced technology and innovative features, our machines allow printing up to 8 colors simultaneously, ensuring a vibrant and eye-catching design. The large size capability makes it perfect for mass production, significantly improving efficiency and shortening turnaround time. The fully automated operating system simplifies the printing process, eliminates the need for manual intervention and minimizes human error. Curve offset technology ensures precise and accurate printing, even on curved surfaces, guaranteeing impeccable results every time.

Send Inquiry

Product Description

Product Specifications

Model	ECI180-8D
Printing color	8
Printing speed	600pcs/min
Max.Printing height	160mm
Min.Printing height	30mm
Max.printing area diameter	180mm
Min.printing area diameter	40mm
Max.cup diameter	200mm
Min.cup diameter	40mm
Printing roller diameter	40mm
Printing plate diameter	600mm
Printing angle	3°-13°
Cup mould roller number	8pcs
Air Pressure	6-8Pa
UV dry rate power	6KW
Voltage	380V 50 HZ/3p 4Line
Main motor power	7.5Kw
Total power	19Kw
Dimension	L5500W3000H3000mm
Weight	8t

Product Features

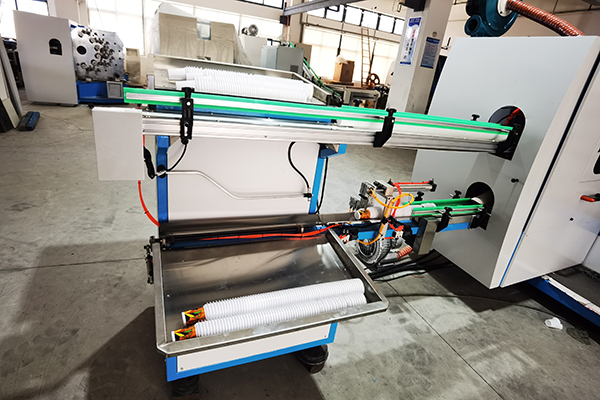

Cup Inlet and Outlet Device

Send the quilt into the printing area, and send the printed cup out after the quilt is printed. This device ensures that the cup maintains a stable position and orientation during the printing process, thus guaranteeing printing quality and efficiency. During the printing process, the cup inlet and outlet device can also help adjust the position of the cup so that it is aligned with the impression of the press to ensure that the printed pattern is accurately printed on the cup.

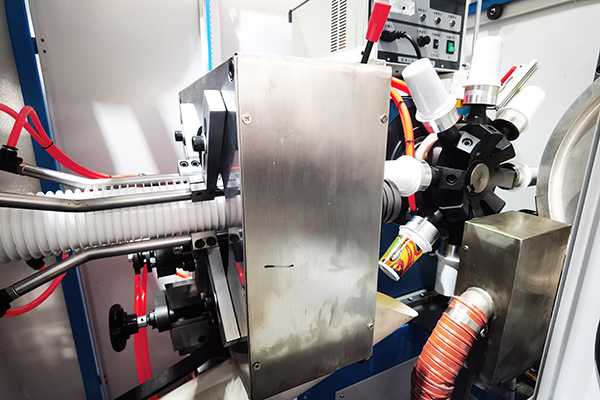

Cup Feeding Device

The cup feeder is used to transport the cups to be printed from the storage area to the working area of the press. The conveyor belt is usually used to ensure that the cup is transported in a stable and orderly manner during the transportation process.

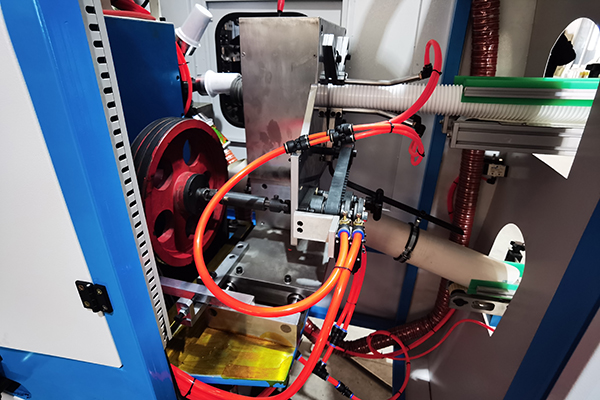

Cup-Separating Device

The cup separation device plays a key role in the cup printing press, which can realize the functions of cup separation, alignment, conveying and so on, and provide a reliable supply of cups for the subsequent printing process, thereby improving production efficiency and printing quality.

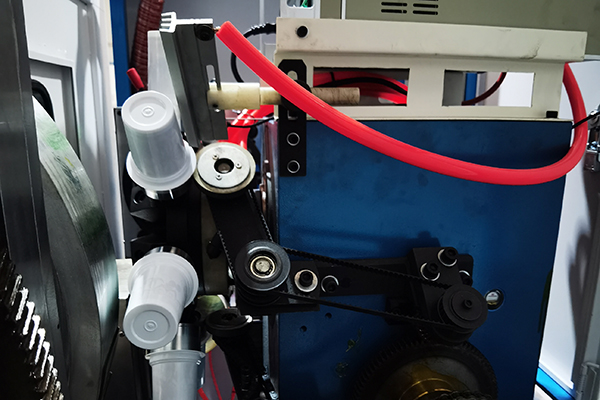

Corona Processing Device

Corona treatment device is a device used to treat the surface of printed matter, mainly used to improve the adhesion of printed matter and surface treatment effect. In the printing industry, corona treatment devices are usually used to treat the surface of materials such as plastic, glass, and metal to enhance their surface tension and improve the adhesion of printing inks.

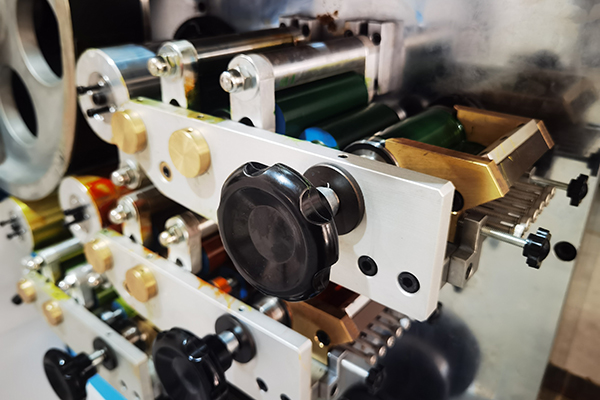

Ink Transfer Device Section

The ink transfer device is a crucial part of the cup press, which is responsible for transferring the ink to the surface of the printed cup, affecting the printing quality and efficiency. The reasonable design and coordination of each component can ensure the uniform transfer of ink and stable printing, improve printing quality and production efficiency.

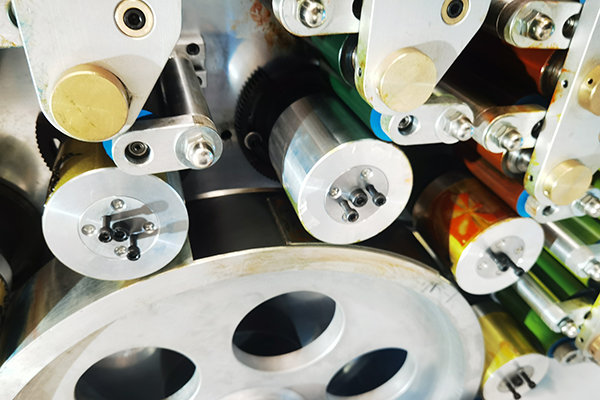

Color Group Plate Roller

Color plate roller is a common equipment component in the printing industry, used to separate and transfer different colors of ink to the surface of the printing material to achieve multi-color printing.

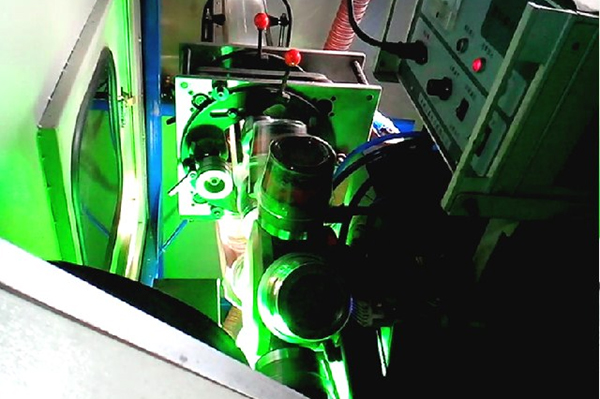

Color Group Plate Roller (Detail)

Ensuring precision alignment and robust ink control mechanism for consistent performance under high-speed production environments.

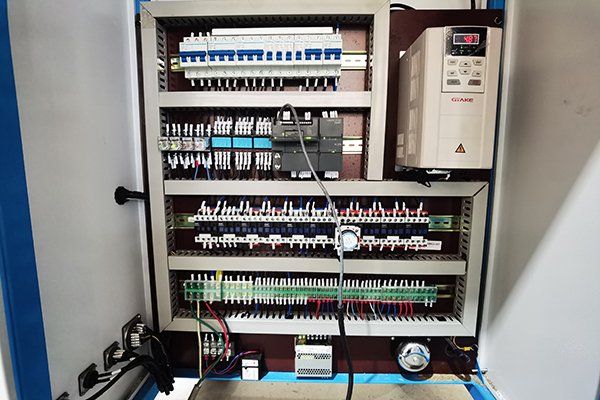

Electrical Appliance Configuration and Assembly

High-standard industrial electrical controls configured for reliable operation, ensuring safety, consistent voltage distribution, and modular maintainability.

Product Advantages

Product Advantages of the ECI180-8D 8-Color High-Speed Fully Automatic Curved Offset Printing Machine

1. Superior Printing Capability

The ECI180-8D is designed to print up to 8 colors simultaneously, delivering vibrant and intricate designs on cups. This capability ensures that your products stand out, leaving a lasting impression on customers and enhancing brand appeal.

2. High-Speed Efficiency

Leveraging cutting-edge technology, the ECI180-8D operates at exceptional speeds, significantly boosting production efficiency. This allows you to meet tight deadlines and handle large orders with ease, giving you a competitive advantage in the market.

3. Fully Automated Operation

The machine is equipped with a fully automated system, minimizing the need for manual intervention. This not only reduces the risk of human error but also streamlines the printing process, saving valuable time and reducing labor costs.

4. Advanced Curve Offset Technology

The ECI180-8D incorporates curve offset technology, ensuring precise and accurate printing on curved surfaces. This guarantees flawless designs on cups of various shapes and sizes, enhancing the overall aesthetic quality of your products.

5. Versatile Printing Options

Whether you are printing on plastic, paper, or metal cups, the ECI180-8D is capable of handling a wide range of materials. Its versatility allows you to meet diverse customer demands and expand your product offerings effortlessly.

6. Durability and Reliability

Built with high-quality materials and components, the ECI180-8D is designed for long-lasting performance and reliability. This minimizes downtime and maintenance costs, ensuring maximum productivity and a strong return on investment.

7. User-Friendly Interface

The machine features an intuitive interface and easy-to-use controls, making it simple for operators to navigate and operate. This reduces training time and enhances overall efficiency in your printing operations.

Product Uses & Applications

Seven Key Applications of Dry Offset Presses:

1. Superior Printing Quality

Our machine is capable of printing up to 8 colors at once, delivering vibrant and detailed designs on cups. This ensures your products capture attention and leave a memorable impression on customers.

2. Exceptional Speed and Efficiency

Leveraging cutting-edge technology, our machine operates at remarkable speeds, boosting production efficiency. This allows you to meet tight deadlines and handle large orders with ease, giving you a competitive advantage in the market.

3. Fully Automated System

Designed with a fully automated operation, the machine eliminates the need for manual input. This reduces the likelihood of errors, simplifies the printing process, and saves both time and labor expenses.

4. Advanced Curve Offset Technology

The machine incorporates curve offset technology, ensuring precise and consistent printing on curved surfaces. This guarantees flawless designs on cups of all shapes and sizes, enhancing their visual appeal.

5. Adaptability for Various Materials

Whether printing on plastic, paper, or metal cups, our machine is versatile enough to handle diverse materials. This flexibility enables you to meet a wide range of customer needs and expand your product portfolio.

6. Robust and Dependable Performance

We prioritize reliability in our machines. Built with premium materials and components, our machine ensures durability and consistent performance, reducing downtime and maintenance costs while maximizing productivity.

7. Intuitive Operation

Featuring a user-friendly interface and straightforward controls, the machine is easy to operate. This minimizes training requirements and enhances overall efficiency in your printing operations.

Upgrade Your Cup Printing with Our 8-Color High-Speed Fully Automatic Curve Offset Printing Machine: From unmatched printing quality to exceptional speed and versatility, this machine will transform your cup printing operations. Discover how this advanced technology can drive success for your business.

Operating Steps

Step-by-Step Guide for Operating the 8-Color Large High-Speed Automatic Curve Offset Press

Step 1

Preparation

Before operating the machine, ensure all required materials and supplies are prepared, including cups, printing plates, ink, and cleaning solutions. Verify that the machine is clean and well-maintained to avoid any operational issues.

Step 2

Loading Cups

Place the cups onto the machine’s feeding tray or conveyor belt. Ensure the cups are properly aligned and securely positioned to prevent misalignment during the printing process.

Step 3

Setting Up Printing Plates

Mount the printing plates onto the machine’s plate cylinders. Ensure the plates are precisely aligned with the cup’s printing area to achieve accurate and consistent printing results.

Step 4

Ink Preparation

Select the desired ink colors and adjust the ink viscosity if needed. Load the ink into the machine’s ink fountain or ink system, ensuring even distribution for consistent color application.

Step 5

Adjusting Printing Parameters

Configure the printing parameters, such as speed, pressure, and registration, based on the cup material, size, and design specifications. Refer to the machine’s manual or follow the manufacturer’s guidelines for optimal settings.

Step 6

Test Printing

Conduct a test print to verify that the design is properly aligned and the colors are accurate. Make any necessary adjustments to the printing parameters to ensure the desired output quality.

Step 7

Start Printing

Once the test print is successful, begin the full production run. The machine will automatically feed the cups, apply ink, and print the design onto the cups. Monitor the process to ensure smooth operation and accurate printing.

Step 8

Quality Control

Regularly inspect the printed cups for defects such as misalignment, smudging, or color inconsistencies. Adjust machine settings or replace printing plates as needed to maintain high-quality output.

Step 9

Cleaning and Maintenance

After completing the printing job, thoroughly clean the machine to remove any residual ink or debris. Perform routine maintenance tasks, such as lubricating moving parts, inspecting belts and rollers, and replacing worn components, to ensure the machine operates efficiently and has a long service life.

Sample Display

Frequently Asked Questions

What is the printing speed of the ECI180-8D curved offset printing machine?

The machine features a maximum production speed of up to 600 pieces per minute (600pcs/min), providing high efficiency and output capacity for large bulk orders.

How many colors can the machine print in a single pass?

The ECI180-8D is equipped with an 8-color printing system, allowing it to print up to 8 distinct colors simultaneously to achieve detailed, vibrant designs on cups.

What are the compatible cup sizes for this machine?

The machine supports cup diameters from a minimum of 40mm up to a maximum of 200mm, with a printing height range between 30mm and 160mm.

What materials can the ECI180-8D offset press print on?

It features highly versatile capabilities and can print on a wide range of cup materials, including various plastics, paper, and metal cups.

Why is the corona processing device important?

The corona treatment device prepares and alters the surface tension of printing materials like plastic, ensuring superior ink adhesion, preventing smudging, and improving final print durability.

What is the printing angle capability of this machine?

The machine supports a printing angle adjustment range of 3° to 13°, allowing it to easily conform to the taper of different cup designs and shapes.
