| Specification Parameter | Details |
|---|---|
| Model | ECI100-6A |
| Printing Color | 6 Colors |
| Printing Speed | 150-200 pcs/min |
| Max. Printing Height | 110mm |
| Min. Printing Height | 20mm |
| Max. Printing Area Diameter | 100mm |
| Min. Printing Area Diameter | 50mm |
| Max. Cup Diameter | 110mm |
| Min. Cup Diameter | 65mm |
| Printing Roller Diameter | 100mm |
| Printing Plate Diameter | 600mm |
| Printing Angle | 3° - 13° |

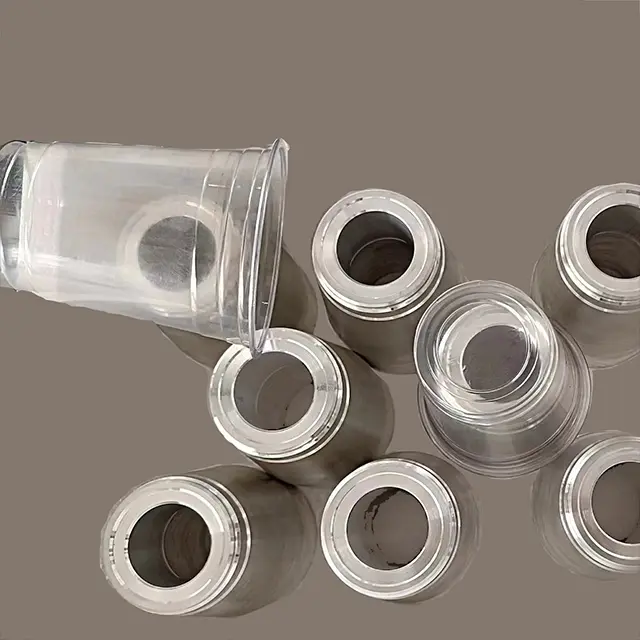

| Cup Mould Roller Number | 8 pcs |
| Air Pressure | 6-8 Pa |
| UV Dry Rate Power | 6 KW |
| Voltage | 380V 50 HZ / 3p 4Line |
| Main Motor Power | 7.5 Kw |
| Total Power | 15.5 Kw |
| Dimension | L4500 * W2500 * H2200mm |
| Weight | 4.2 T |

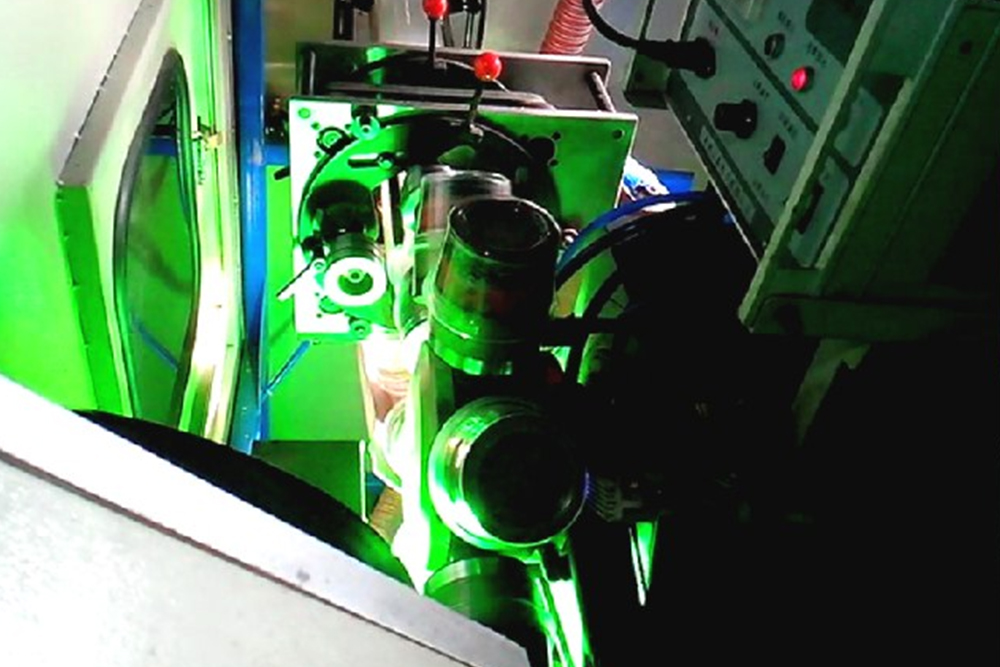

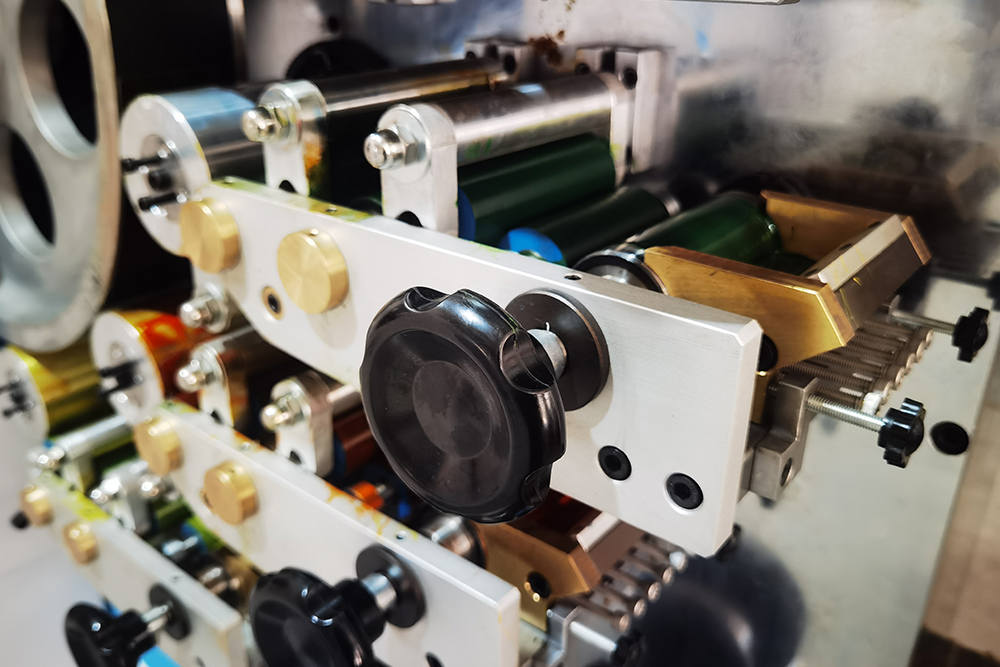

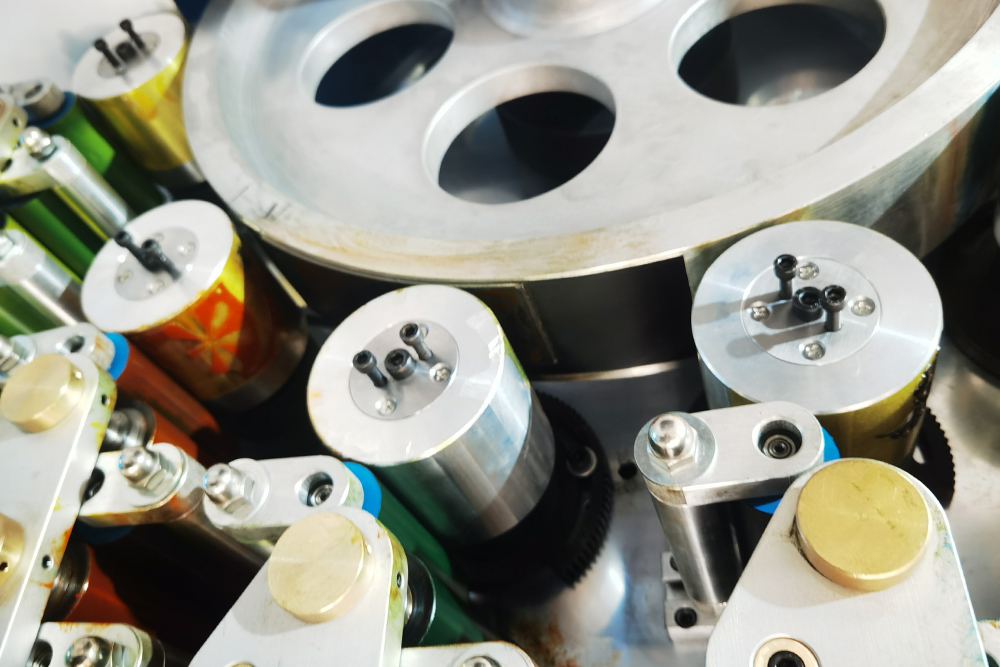

The machine is equipped with six printing rollers, each corresponding to a specific color. These rollers transfer ink to the printing plate, which is then applied to the printing material. Through the coordination of these colors, the machine can print up to six colors simultaneously. For customers requiring additional metallic or specialty colors, different color effects can be achieved through color blending. Additionally, the machine includes a professional color management system to ensure precise and consistent color reproduction.
The press features a built-in drying system that rapidly cures printing ink or pigments. During the drying process, operators can monitor the drying effect and adjust equipment parameters in real-time to meet specific requirements, ensuring optimal drying quality. Once the product exits the machine, the printing quality is immediately inspected to verify color accuracy and pattern alignment.
The machine allows for flexible adjustments to accommodate various product printing needs. Parameters such as printing speed, height, area, angle, and pressure can be customized to ensure the final product meets exact specifications. Additionally, the machine supports quick mold switching, enabling efficient transitions between different products and significantly improving production efficiency.

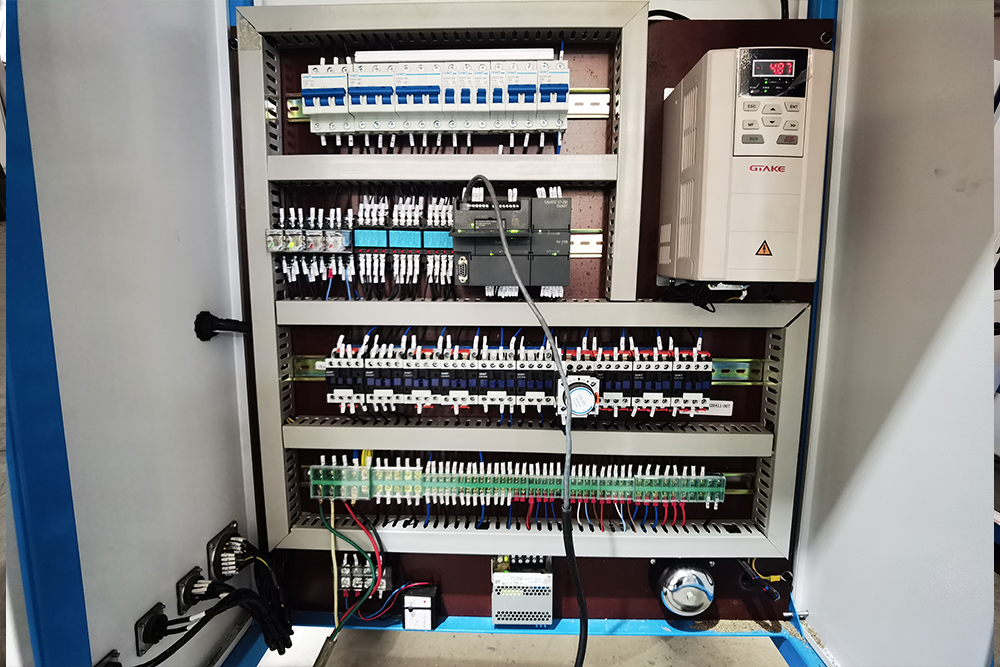

The press is equipped with an intelligent control system managed through a PLC controller and touchscreen interface. This system enables real-time monitoring and management of the printing process, allowing operators to detect and address machine conditions promptly. This reduces the likelihood of malfunctions and enhances overall operational efficiency.

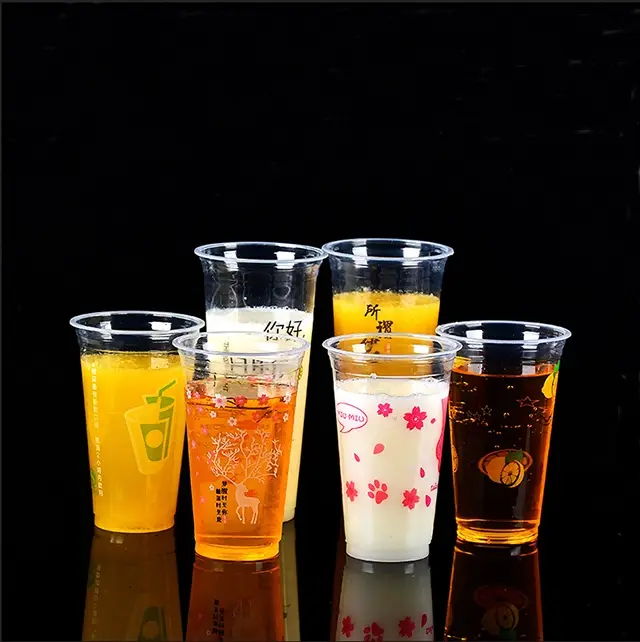

The machine boasts a printing speed of 150-200 products per minute, with adjustments made based on customer and product requirements. It supports a printable product diameter range of 65-100mm, a printing height of 20-95mm, a printing diameter of 50-100mm, and a printing angle of 3° - 13°. This versatility allows the machine to handle a wide range of products, from small jelly cups to larger ice cream tubs. Common items such as milk tea cups, jelly cups, and juice cups are all within its printing capabilities.
This machine is ideal for plastic cup manufacturers, offering an efficient printing solution to meet the growing demand for personalized customization. It enables the printing of various patterns and designs, enhancing advertising effectiveness and attracting consumer attention. With its high-precision printing capabilities, the machine ensures detailed and accurate reproduction of patterns and text, guaranteeing superior print quality. This not only elevates the product's appeal but also strengthens the company's brand development.
The ECI-6A is also well-suited for creating customized gifts and promotional items. It allows businesses to produce personalized disposable plastic cups tailored to specific events or marketing needs, catering to a wide range of occasions and preferences.
Disposable plastic cups are commonly used at events, parties, and celebrations. The curved printing machine can print themed logos, event-specific designs, or sponsor advertisements on cups, providing a customized solution that aligns with the occasion's requirements.
Disposable plastic cups are widely utilized in the food and beverage sector, including fast-food restaurants, beverage shops, and cafes. The ECI-6A can print logos, brand slogans, and decorative patterns on cups, enhancing brand visibility and product attractiveness. This capability helps businesses stand out in a competitive market by offering visually appealing and branded products.
The ECI-6A is widely used by plastic cup manufacturers to deliver efficient and high-quality printing solutions. It meets the growing demand for personalized customization by printing intricate patterns and text, enhancing advertising impact and attracting consumers. With its high-precision printing capabilities, the machine ensures superior print quality, contributing to brand development and market competitiveness.
This curved printing machine is ideal for producing customized gifts and promotional items. It enables the creation of personalized disposable plastic cups tailored to specific events or marketing needs, offering a unique way to engage customers and promote brands.
Disposable plastic cups are commonly used at events, parties, and celebrations. The ECI-6A can print event-specific logos, sponsor advertisements, or thematic designs, providing a customized solution for special occasions and enhancing the overall experience.
Disposable plastic cups are extensively used in the food and beverage sector, including fast-food chains, coffee shops, and beverage outlets. The ECI-6A can print logos, brand slogans, and decorative patterns on cups, helping businesses strengthen their brand identity and increase product appeal.
The ECI100-6A curved printing machine operates at a high production speed of 150 to 200 pieces per minute. The speed can be adjusted according to specific product shapes and printing requirements.
The machine is designed with a 6-color printing capability, featuring six independent rollers. By coordinating these rollers and blending colors, it can print up to six colors simultaneously, including specialized colors.
The machine handles cup diameters ranging from a minimum of 65mm to a maximum of 110mm. It supports printing heights from 20mm up to 110mm, with printing angles adjustable between 3° and 13°.
Yes, the machine features an integrated UV drying system with a rated power of 6KW. This system rapidly cures the ink or pigments as they are printed, ensuring dry, smudge-free, and high-quality outputs immediately.
It is equipped with an automatic control system managed via a PLC controller and an interactive touchscreen interface. This allows operators to easily monitor parameters, adjust printing settings, and manage machine conditions in real-time.
It is highly suited for large-scale disposable cup manufacturing, food and beverage businesses (such as milk tea, juice, and coffee shops), custom promotional items, and special event branding where logos and slogans need to be printed on curved plastic surfaces.
