China 6-Color Curved Offset Plastic Cups Printing Machine Product, Service

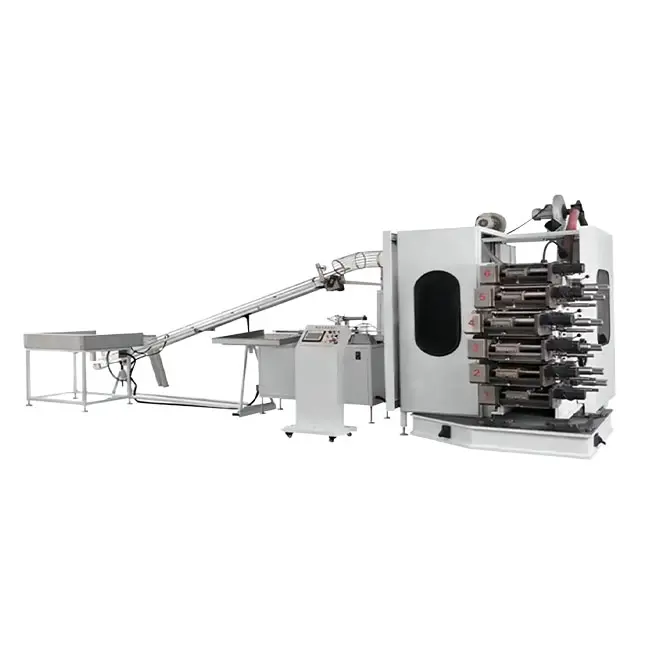

ECI180-6D curved offset press is a fully automatic equipment, usually used for printing cups, bowl surface, technically using international advanced technology, so that it has a high-precision manufacturing process, reasonable structure, all the use of related materials and accessories are in line with national standards and industry standards and customer needsã€‚The performance is equipped with horizontal automatic feeding, surface corona treatment corona treatment, a handle split cup adjustment mode, etc., can also be configured to eliminate static electricity equipment. When the machine encounters cupless and double cups, the printing drum will automatically separate. The plate roller gear has an automatic adjustment gap, which is no shadow when printing. Printing has a special punching machine, accurate version, simple and convenient operation. The replacement of mold and mold core is easier.

Send Inquiry

Product Description

Model	ECI180-6D
Printing color	6
Printing speed	200-400pcs/min
Max.Printing height	160mm
Min.Printing height	30mm
Max.printing area diameter	180mm
Min.printing area diameter	40mm
Max.cup diameter	190mm
Min.cup diameter	40mm
Printing roller diameter	40mm
printing plate diameter	600mm
printing angle	3°-13°
Cup mould roller number	8pcs
Air Pressure	6-8Pa
UV dry rate power	6KW
Voltage	380V 50 HZ/3p 4Line
Main motor power	7.5Kw
Total power	19Kw
Dimension	L5500W2300H2200mm
Weight	4.8T

Cup inlet device

Cup-feeding device

Corona treatment device

Printing adjustment part

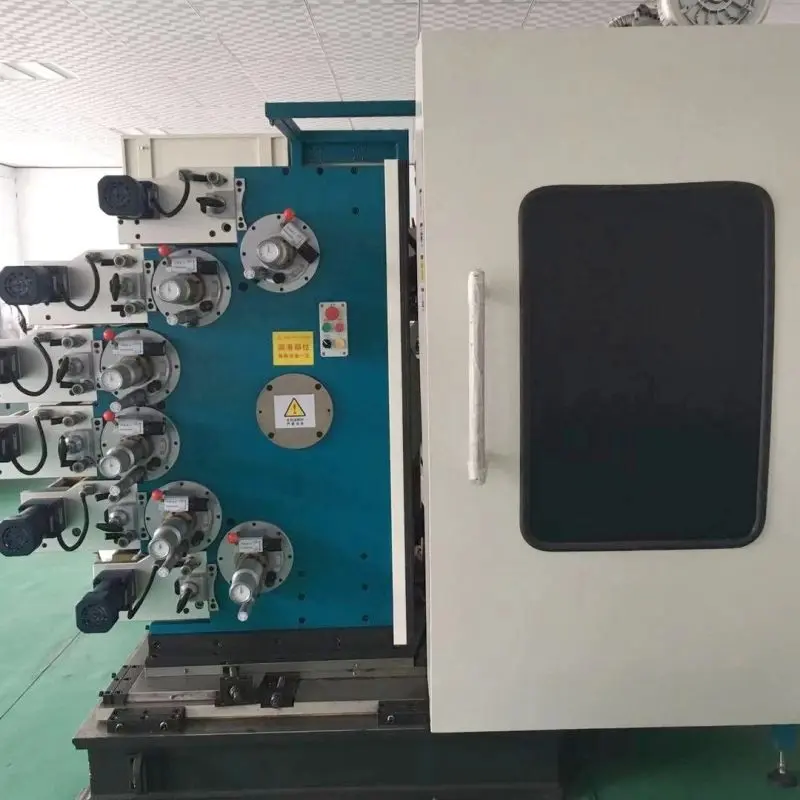

Color group plate roller

Electrical equipment configuration and assembly

Cup outlet device

Cup-separating device

Printing adjustment part

Ink transfer device part

UV curing part

Product Advantage

Adapts irregular shapes for most advanced printing on cylinders, hemispheres, and much more.
Milk tea cups, yogurt cups, bowls, printed with your logos and pictures.
Full-colored so that it can provide rich and extensive printing possibilities.
Automatic feeding, stereotypes cleaning, double-cup separation for ease of operation.
Can reach super fast speed at 400 products per minute and 24,000 per hour.
High-precision printing leads to fewer mistakes and improved production efficiency.
Use of inks and materials that are friendly to the environment hence less waste produced.
Operational and environmental safety is ensured by meeting environmental standards.

Product Applications

Beverage and food industry: plastic cup curved dry glue machine can be used to print PP\PS\PET\PLA\PVC and other materials of beverage cups, coffee cups, yogurt cups, jelly cups, wine cups, bowls and other food containers on the trademark, production date, brand identity and advertising patterns.
Publicity material industry: the printing plate of the cup printing machine has a special punching machine, which is accurate to the plate, and is also equipped with a special fixture and printing head, which can achieve high-precision printing, ensure the printing quality and printing efficiency, and can be used to print advertising slogans, activity information and patterns on promotional cups, activity cups and other promotional materials.
Events and events: The cup printer can be used to print event logos and sponsor advertisements on cylindrical containers such as event cups and event commemorative cups.
Household goods industry: Cup printing machine can be used to print decorative patterns and personalized customization on glasses, ceramic cups, stainless steel cups and other household goods.

Operation Guide

The operation process of a curved offset press usually includes the following steps:

1

Preparation: Place the curved container (such as a plastic cup) that needs to be printed on the work table of the curved offset press, and fix it to ensure that the container is stable and will not move.
2

Adjust the equipment: According to the actual situation, adjust the printing head, printing pressure, printing speed and other parameters of the curved offset press to ensure the printing effect and printing quality.
3

Set the printing content: Use the control panel of the curved offset press or computer software to set the content to be printed, including text, pattern, color, etc. If multi-color printing is required, the corresponding color separation and setting are also required.
4

Start printing: After confirming the equipment and printing content Settings, start the curved offset press and start printing. In the printing process, it is necessary to pay attention to the printing effect and adjust the equipment parameters in time to ensure the printing quality.
5

Finish printing: When the printing is complete, stop the curved offset press, remove the printed curved container, and check and confirm the quality.
6

Cleaning and maintenance: clean the printing head, table and other parts of the curved offset press to ensure that the equipment is clean and in good condition. At the same time, do a good job of daily maintenance of the equipment to extend the service life of the equipment.

FAQ

Are you a factory or a trading company?

We are a factory.

Can your machines be customized?

Yes, our machines can be customized, including the outer packaging, color, LOGO, and other specifications.

How long is the delivery time?

Usually it takes 15-35 working days.

Do you have a warranty? How long is the warranty period?

There is a warranty. The warranty period is 12 months starting from the delivery date. During the warranty period, except for human factors, spare parts are repaired free of charge. Beyond the warranty period, spare parts costs and shipping will be covered by the customer.

How to install the machine?

If installation support is required, we can install it for free within one week from the arrival of our technical support team at your facility. After the first week, standard technician service fees apply, along with travel, accommodation, and meal expenses. Alternatively, you can proceed with self-installation, and we will arrange professional staff to guide you through video call or phone support.
