| Model | ECI-DB450 |
| Packaging film width | 450mm |
| Packaging material | BOPP, CPP, PE, film etc. |
| Cup diameter | 40-120mm |
| Packing speed | 1500 Pcs/min |
| Total power | 4.5Kw |
| Voltage | AC220V 50HZ |
| Machine weight | 900Kg |
| Overall dimension | 520*850*1200mm |

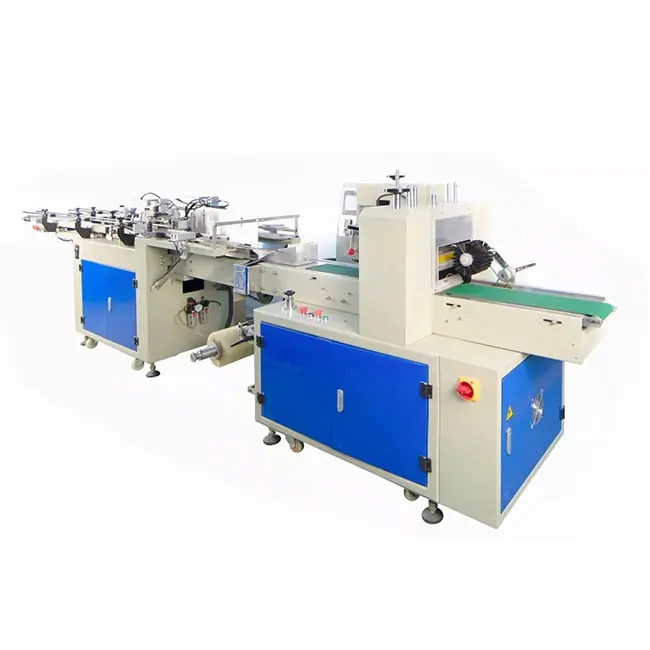

Main Advantages of the Disposable Cup Double-Row Packaging Machine:
Operates in a dual-row mode, enabling simultaneous packaging of two rows of cups. This significantly enhances packaging efficiency and reduces labor costs.
Designed to accommodate disposable cups of various sizes and specifications. By adjusting equipment parameters and replacing molds, it meets diverse packaging requirements with ease.
Equipped with advanced control systems and sensors, ensuring precise regulation of temperature, pressure, and speed during the packaging process, guaranteeing consistent quality.
Independently executes tasks such as cup feeding, positioning, sealing, and cooling. This minimizes manual intervention and boosts overall production efficiency.
Constructed with high-quality materials and components. It ensures long-term stable operation, reducing the frequency of malfunctions and maintenance needs.
Incorporates energy-saving designs that lower energy consumption and minimize waste generation, aligning with modern environmental sustainability standards.
With an intuitive interface and control panel, operators can easily set parameters and initiate the packaging process, simplifying operation and training.
Equipped with multiple safety mechanisms, including overload protection, temperature protection, and emergency stop buttons, ensuring safety for operators and the equipment.
The following steps outline the basic operational process for the disposable cup double-row packaging machine. Before operating the machine, carefully read the device's operation manual.
Verify that the equipment is functioning properly. Ensure that all necessary packaging materials and disposable cups are available and complete. Perform required cleaning and disinfection.
Based on the desired packaging specifications, configure the machine's parameters, such as temperature, pressure, and speed. This ensures the packaging process maintains both quality and efficiency.
Place the disposable cups into the feeding mechanism. The machine will automatically transport the cups to the packaging area. Ensure proper alignment, avoiding overlapping or tilting.
The double-row packaging machine will automatically execute the packaging process. It will perform heating, sealing, cooling, and other steps according to the preset parameters.
During operation, monitor the packaging quality to ensure seals are intact and there is no air leakage. Make adjustments or corrections as needed.
Once the packaging process is complete, the machine automatically discharges the packaged disposable cups. Collected and organize the finished products promptly.
After completing the run, clean the equipment. Remove residual cups and packaging materials, lubricate the machine, and perform routine maintenance tasks to extend lifespan.
