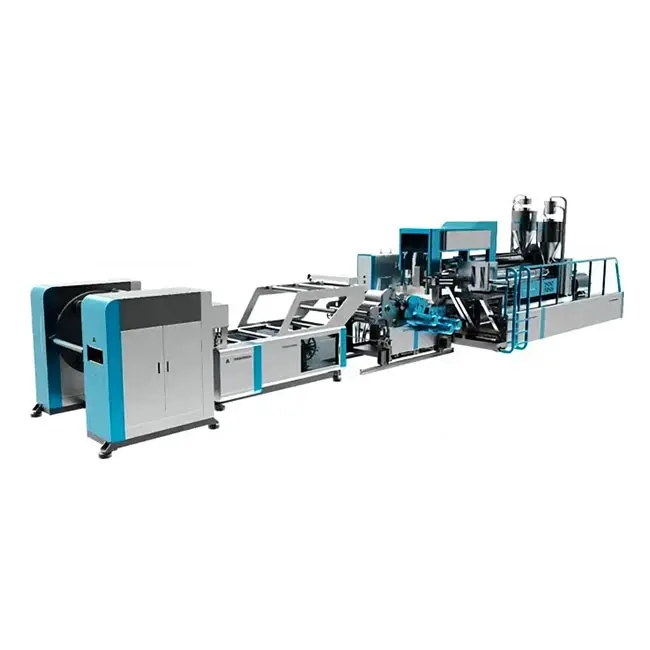

| Model | ECI-75&42-1000 |
| Screw type | JWP twin screw extruder |
| Sheet material | PP, PET, PVC |
| Sheet thickness | 0.2-1.5mm |
| Sheet Width | 1000mm |
| Max. extrusion | 400-500mm |
| Total power | 350Kw |
| Effective width of die | 1200mm |
| Effective width of roller | 1300mm |
| Running power | 200KW |
| Dimension | 32m * 6m * 4m |
| Voltage | 3 * 380V 50 HZ |
| 1# 2# 3# roller size | Φ350-Φ450mm-Φ550 |
| Main motor | 132KW |
| L/D | 44 |
| Screw diameter | 71mm |
| Barrel hardness | HV1050 |
| Screw hardness | HV950 |
| Heating power | 60KW |
| Circulating water pump | 0.55KW |
| Calender transmission power | 4Kw |
| Roller temperature control system | 4KW |
The screw and barrel are made of nitrided steel. It enhances the screw and barrel's resistance to wear, and it improves the heat transfer efficiency during processing, making the equipment's operation stable and reliable. This also maintains low wear of the machine during work, thereby cutting the maintenance costs and increasing the longevity of the machine.
Hydraulic and manually driven mode are adopted for net changing by the net changer. The structure is a double column type double station that makes the equipment stable and reliable with immense output force and wide range of speed regulation.
It uses a domestic high-quality horizontal three-roll calender, hydraulic opening adjustment mode, adjustment accuracy, easy operation, good stability, self-locking function, safety emergency switch, never control system, and reliability. To ensure a reliable device.
The control system is automatic with the double-station turning machine, so continuous winding follows winding to a certain degree, after which it automatically turns to another working position for continuous winding. It will achieve automatic take-up and turnover and reduce manual intervention for safer operation.
ECI-75/42 extrusion die head effective width: 1200 mm | rolling effective width: 1300mm | product width: 1000mm. The product size range is wide, the production efficiency is high, and the product display is uniformed.

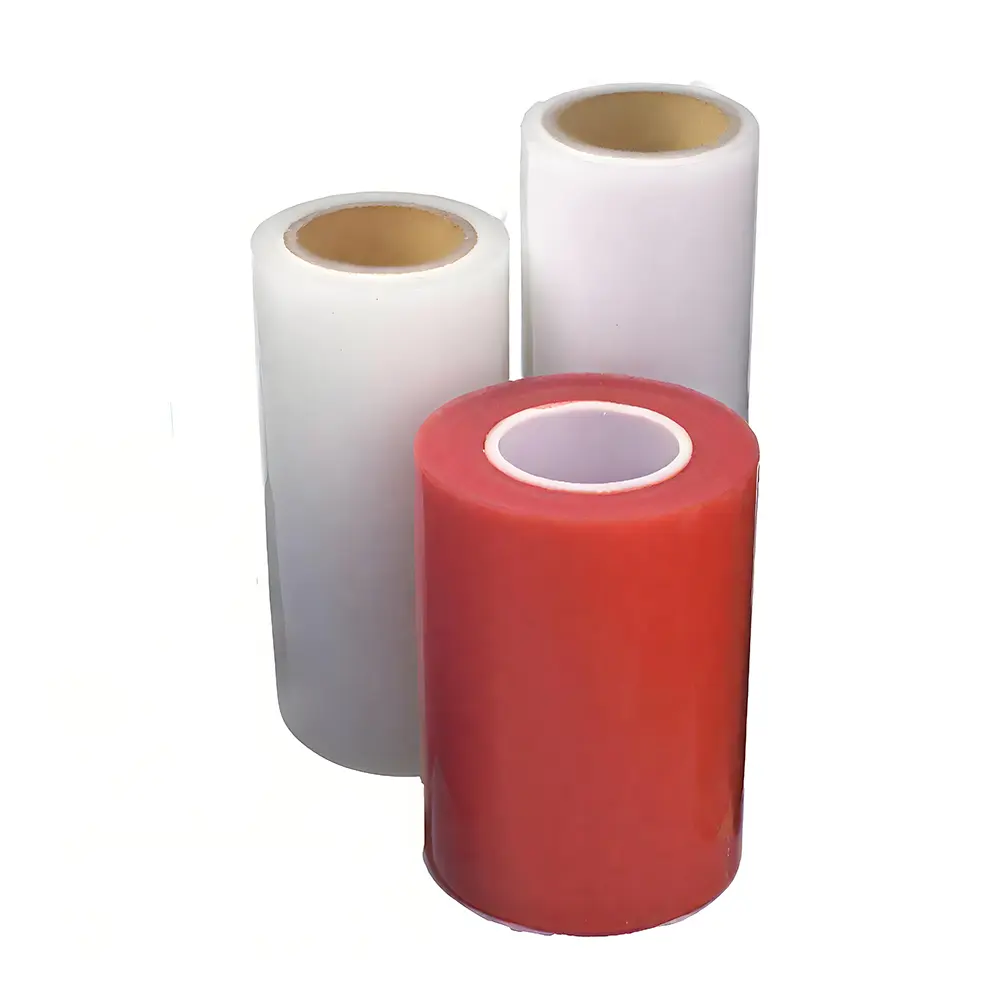

The double layer sheet machine is widely used in the plastic processing industry for applications including the manufacturing of plastic sheets, plastic bags, plastic film, and more such products across various industries, including but not limited to:
Produces various plastic containers such as airline cups, milk tea cups, bowls, disposable lunch boxes, fruit & vegetable boxes, etc.
Manufactures plastic packaging materials, food packaging films, shopping bags, plastic wraps, and custom packaging for different industries.
Used for producing agricultural mulch and greenhouse mulch to help increase output and improve crop quality.
Provides covering, packing, protective layers, and other general industrial application films.
Applies to the production of medical plastic film, medical bags, medical equipment packaging, and other sanitation products.

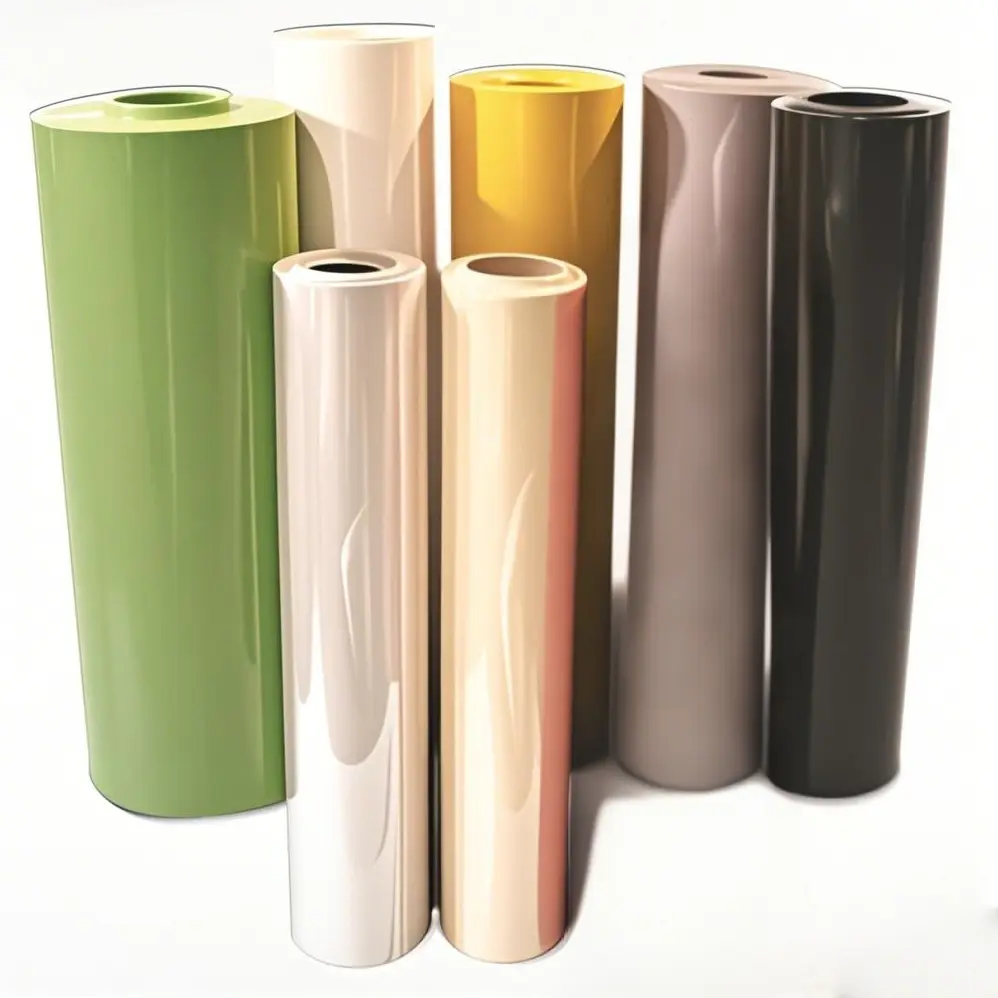

The produced sheets are also widely applied to flooring materials, interior decorative materials, stationery, and other specialized fields.
