The technical parameters of the ECI-H750 model are detailed below, demonstrating its capability and capacity for high-volume plastic thermoforming tasks:
| Parameter | Specification |
|---|---|
| Model | ECI-H750 |
| Sheet material | PP PET PS PVC HIPS ABS |
| Sheet thickness | 0.3-2.0mm |
| Sheet Width | 540-650mm |
| Max.Forming area | 750*350mm |
| Max.forming Depth | 150mm |
| Sheet speed | 25Strokes/min |
| Heating rated power | 50Kw |
| Main motor power | 11Kw/4grade |
| Air Pressure | 0.6-0.8Mpa |
| Air comsumption | 2500-3500L/min |
| Water consumption | 30-35L/min |
| Voltage | 380V 50 HZ |
| Total power | 150Kw |
| Dimension | L4000*W1600*H2200 |
| Weight | 7T |

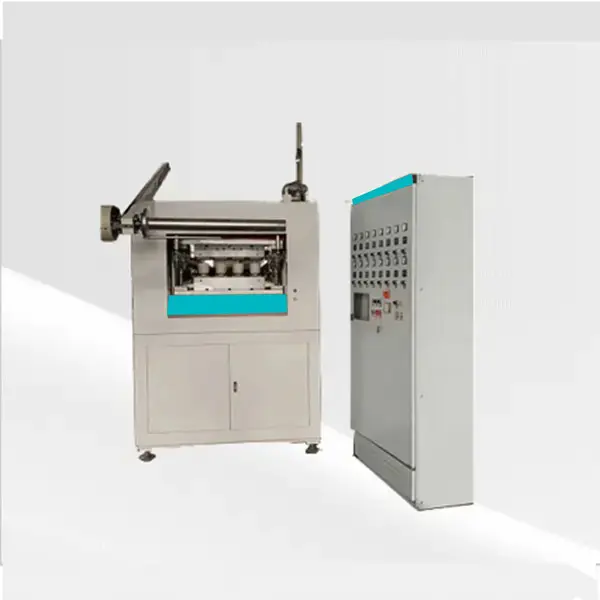

Our fully automated hydraulic plastic thermoforming machine represents the state-of-the-art in plastic thermoforming processing, offering several distinct characteristics:
The equipment adopts a fully computerized control system, realizing automatic operation across the manufacturing process, decreasing manual intervention and enhancing production efficiency.
The machine utilizes a hydraulic system with high pressure and stability, ensuring the uniformity and consistency of the plastic during the molding process.
Equipped with superior molds and sensors, the tool can attain high precision plastic molding, ensuring consistency in the quality and measurements of the finished product.
The machine can be applied to the thermoforming processing of a number of plastic materials, producing plastic merchandise of various shapes and sizes with high flexibility and adaptability.
The equipment adopts advanced energy-saving technology, minimizing electricity consumption, enhancing manufacturing efficiency, and limiting production costs.
The operation interface of the equipment is simple and intuitive, making it convenient to operate and maintain, thereby lowering the training costs and time of the operator.
Designed to successfully produce airline cups. Its advanced science and unique control ensure the manufacturing of premium plastic cups meeting flight standards. Output cups are durable, lightweight, and offer great heat resistance.
Well-suited for milk tea cup production. The hydraulic setup molds material precisely into standard sizes. Its automated system ensures consistent dimensions and smooth finishing, making them resistant to high temperatures.
Capable of producing plastic bowls of various sizes. Enables structure formation with uniform thickness and clean edges. Ideal for soups, salads, and food items, providing convenient and hygienic packaging solutions.
An ideal solution for manufacturing ice cream cups. Molds plastic material into shape with excellent insulation properties to keep desserts cold. Provides precise control for enhanced visual presentation and structure.
Ensure that the power supply and hydraulic system of the machine are working properly. Check all components to confirm they are in accurate condition, and clean the workbench and mold.
Select the appropriate mold in accordance with the preferred shape and dimension of the plastic product. Install it securely and ensure it is placed and constant correctly.
Turn on the heating system and set the temperature and time according to the plastic material in use. Wait for the machine to reach the preheated temperature.
Place the preheated plastic sheet or coil at the feed port, ensuring the material is fully aligned to the contact surface of the mold.
Initiate the computerized control system. The hydraulic system will apply the necessary pressure to form the plastic material inside the mold cavity.
Turn off the heating and start the cooling process. This quickly cools the molded plastic product, allowing it to cure, solidify, and stabilize.
Once fully cooled, open the mold and carefully extract the finished product. Check the overall quality and dimensions against your target specifications.
Clean the mold and workbench to prepare for the next run. Perform regular maintenance and protection checks to extend the service life of the equipment.
A: The machine is highly versatile and compatible with a wide range of plastic materials, including PP, PET, PS, PVC, HIPS, and ABS.
A: It features a maximum forming depth of 150mm and operates at a sheet speed of up to 25 strokes per minute, making it suitable for deep containers like cups and bowls.
A: The hydraulic system provides consistent, high-pressure execution during the forming process. This ensures uniform sheet thickness and smooth edges on the final product.
A: Yes, it is equipped with a computerized control system that fully automates the operations from feeding, heating, and forming to cooling and curing, minimizing manual labor requirements.
A: The system runs on a 380V 50Hz electrical supply. The total power usage is 150Kw, requiring an air pressure of 0.6-0.8Mpa and a water consumption of 30-35L/min for the cooling systems.
