| Parameter | Specification Details |
|---|---|
| Model | ECI180B-1000 |
| Sheet material | PP, PET, PS, PVC, HIPS, ABS |
| Sheet thickness | PP 1.0 ~ 3mm |
| Sheet thickness error | ±0.015mm |
| Sheet wire speed | 5 ~ 28m/min |
| Sheet Width | 800-900mm |
| Max. extrusion | 900kg/h - 1000kg/h (Containing 50% recycled material, sheet thickness ≥0.50mm, sheet width ≥650mm, 1.0X710mm sheet) |
| Total power | 315Kw |
| Voltage | 380V 50 HZ / 3p 4wire |
| Dimension | 15050 × 4825 × 3235mm |
| Roll specifications | Φ500 × 1000mm (Independent transmission) |
| Fixed roller specifications | Φ650 × 1000mm (Independent transmission) |
| Styling roller specifications | Φ500 × 1000mm (Independent transmission) |
| Styling roller No. 1 specifications | Φ320 × 1000mm (Independent transmission) |
| Styling roller No. 2 specifications | Φ160 × 1000mm |

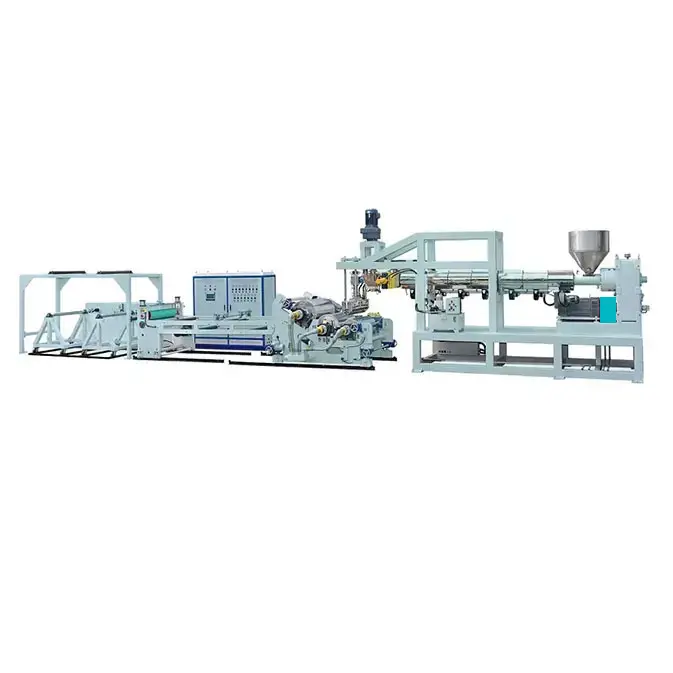

Designed for the strict requisites of the plastic sheet industry, this professional high-speed single layer sheet extruder ensures highly efficient applications and improves your production performance.
Engineered for robust construction to handle repetitive works in demanding plastic extrusion environments. Advanced technology delivers continuous high-quality sheet output consistently.
Equipped with specialized features to safeguard sheet quality during manufacturing, substantially lowering material waste and operational costs per item.
Processes a wide spectrum of raw plastics including polyethylene, polypropylene, and others while maintaining top performance levels and finished product quality.
Prioritizes workspace safety with complete safety features including emergency stop configurations and robust protective enclosures.
Increases productivity and precision to allow businesses to meet tight deadlines, enhancing bottom-line efficiency with ease of operation.
Widely applied for producing high-quality PP, PS, and PET sheets used in corrugated packaging for consumer goods. These sheets form strong protective barriers during transit and storage, satisfying strict industry metrics with uniform thickness and clarity.
Produces food-grade plastic sheets safe for direct contact with food products. These sheets packaging fruits, vegetables, bakery items, dairy, and ready-to-eat meals require rigorous temperature and cooling controls to maintain freshness, taste, and nutrition.
Utilized for medical packaging and equipment production using medical-grade PP, PS, and PET raw materials. High-precision extrusion guarantees clarity, smoothness, and sterilization readiness for disposable supplies and surgical tool packages.
Produces robust sheets for automotive interior and exterior components like dashboards, door panels, trims, and protective covers. The extrusion technology ensures consistent dimensions, impact strength, and aesthetic surface finishes.
Outputs construction-grade sheets possessing weather resistance, UV stability, and high impact strength. Applied widely in roofing sheets, wall cladding, insulation panels, and safety barriers for modern architectural structures.
Only trained personnel should manage this equipment. Regular servicing is necessary for optimal performance and safety. Standard operations follow these steps:
Verify all safety systems, components, power connections, and cooling water lines are functional and complete.
Turn on power supplies to the extruder and die head, letting the zones preheat to standard operating limits.
Pre-set the extrusion velocity, temperature profiles, and line pressure parameters matching specific run settings.
Set the die head aperture gap and configure the cooling roll speed for the targeted sheet thickness and width.
Monitor production outputs constantly to adjust real-time quality parameters and maximize output efficiency.
Extract sheet samples periodically to inspect dimensions, surface flatness, and thickness parameters.
Power down systems post-production. Complete essential maintenance by thoroughly cleaning the extruder, die head, and cooling rolls.
The extruder is highly versatile and compatible with a wide range of plastic materials, including PP, PET, PS, PVC, HIPS, and ABS.
The maximum extrusion capacity ranges between 900kg/h and 1000kg/h when containing 50% recycled material, given a sheet thickness of ≥0.50mm and width of ≥650mm.
Yes, it is widely used in the Food & Beverage industry to process food-grade materials like PP, PS, and PET. With accurate temperature controls, it produces hygienic packaging sheets with excellent barrier properties.
Yes, the extruder is designed to efficiently process formulations containing up to 50% recycled material without compromising structural strength and sheet quality.
The extruder features comprehensive safety configurations, including quick-response emergency stop buttons and physical protective enclosures to ensure a secure working environment for operators.
