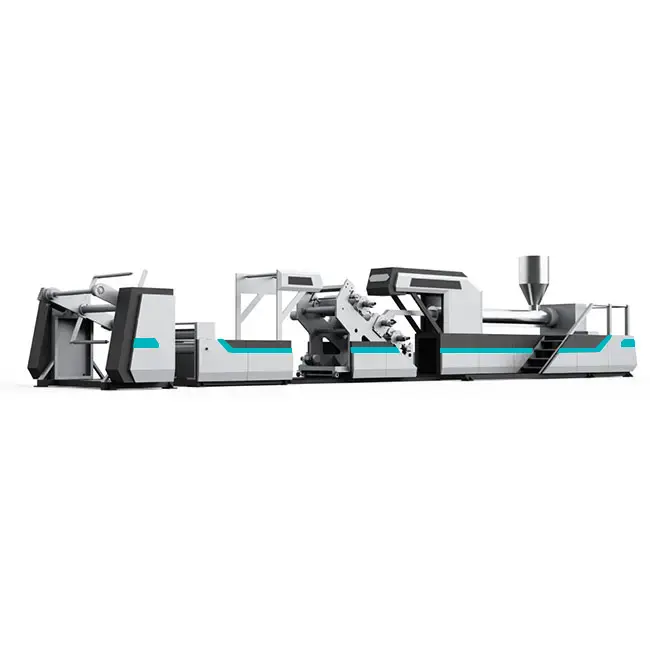

High-Quality Diagonal Single-layer Plastic Sheet Extruder Machine Manufacturer, Factory

ECI-200 tools is an environment friendly and secure manufacturing equipment, appropriate for the production of a range of single-layer sheets, broadly used in packaging, construction, automotive, electronics, scientific and different industries.
Our single sheet machines use superior science and format to allow quick and specific manufacturing approaches to make sure secure and dependable product quality. By adjusting the parameters of the extruder and the mould structure, it can produce distinct materials, distinct thicknesses, exceptional widths of single sheets to meet the character wishes of customers. At the equal time, its funding is low, and it is a appropriate preference for small and medium-sized enterprises.

Send Inquiry

Product Description

Product Specifications

Model	ECI-200
Capacity	150-200kg/h
Number of screws	1
Sheet material	PP PET PS PVC HIPS ABS
Sheet thickness	0.15-1.5mm
Screw diameter	110mm
L/D ratio	33:1
Main motor	55KW
Overall power	100Kw
Overall Dimension	L1.2W1.8H2.2
Voltage	380V 50HZ
Machine weight	7T

Product Advantages

The ECI-200 horizontal single sheet machine is an environmentally friendly manufacturing tool engineered with multiple advanced advantages:

High Manufacturing Efficiency

Utilizes superior manufacturing technology to produce outstanding sheet products quickly and efficiently.

Energy Saving & Protection

Saves power throughout the manufacturing process, reduces emissions, and fully meets eco-protection standards.

Good Stability

Adopts a highly stable structural design for safe operations, maintaining a remarkably low failure rate.

High Degree of Automation

Equipped with an advanced automated control system for easy operation and a smarter production process.

In summary, the inclined horizontal single-layer sheet machine combines efficiency, energy conservation, stability, and intelligence to serve as crucial equipment in modern production.

Product Applications

The horizontal single sheet machine operates extensively across diverse industries, focusing on the following applications:

Plastic Products Production

Commonly used to manufacture plastic products, including packaging bags, containers, and specialized sheets.

Medical Device Manufacturing

Fabricates specialized plastic sheets and precise packaging materials essential for medical supplies.

Electronic Products

Applicable for creating protective structural shells and foundational circuit board insulation sheets.

Building Materials & Agriculture

Produces robust flooring sheets, wallboards, and agricultural films or greenhouse protection covers.

Operation Guide

Operators must follow these vital steps to ensure consistent quality and workplace safety:

Preparation & Startup Check

Ensure all components are intact, verify the power and air supply, clear internal debris, and activate the main power.

1. Setting Parameters

Adjust specific values like temperature, operating speed, and pressure according to production needs.

2. Material Feeding

Feed raw materials into the hopper, balancing the feeder speed to guarantee uniform entry.

3. Equipment Activation

Start the machine system following the operation manual and closely observe initial run status.

4. Production Management

Monitor the running processes, dynamically adjusting the temperature and velocity to match targets.

5. Safety Monitoring

Perform periodic checks throughout the manufacturing process to maintain safe and stable system performance.

6. Cleaning and Maintenance

Clean out internal and external residue once production ends to keep the machinery in optimal condition.

7. Shutdown Procedure

Shut down the primary power, disconnect the air supply, and apply appropriate coverings against dust and moisture.

Frequently Asked Questions (FAQ)

What types of sheet materials can the ECI-200 machine process?

The ECI-200 is highly versatile and capable of processing a wide variety of sheet materials, including PP, PET, PS, PVC, HIPS, and ABS.

What is the production capacity and thickness range?

The machine offers a stable production capacity of 150 to 200 kg per hour, supporting sheet thicknesses ranging from 0.15mm up to 1.5mm.

How does this machine support energy conservation?

Equipped with energy-saving structural engineering, the machine optimizes power consumption during heating and extrusion, significantly reducing waste emissions.

In which industries is this sheet machine most commonly used?

It is widely implemented in plastic packaging, medical device packaging, consumer electronics shell components, building materials (flooring/wallboards), and agricultural films.

What are the primary power requirements and physical specifications?

The ECI-200 operates on a 380V 50HZ power supply with an overall power of 100Kw. Its physical dimensions are L1.2*W1.8*H2.2 meters, with an overall weight of 7 tons.
