| Model | S900/610 |
|---|---|
| Applicable material | PP, PET, PS, PVC, PLA |
| Forming method | Positive and negative pressure molding |
| Maximum molding area | 750mm * 610mm |
| Minimum forming area | 400 * 300mm |
| Applicable sheet width | 400 - 850mm |
| Applicable sheet thickness | 0.21 - 2.5mm |
| Maximum punching area | 770 * 650mm |
| Molding stroke | 450 - 550mm (Adjustable up and down) |
| Punch the die stroke | 300 - 400mm (Adjustable up and down) |
| Molded product height | ≤ 120mm |
| Common platform | Customizable |
| Overall power | 275KW |
| Voltage | 380V / HZ |
| Weight | 14000Kg |
| Dimension | L14500mm * W2400mm * H2400mm |
| Maximum material roll radius | 600mm |
| Work efficiency | 15 - 40 P/min |
| Tool length | ≤ 12mm |
| Die core-pulling | ø50 - ø30 - H10 |

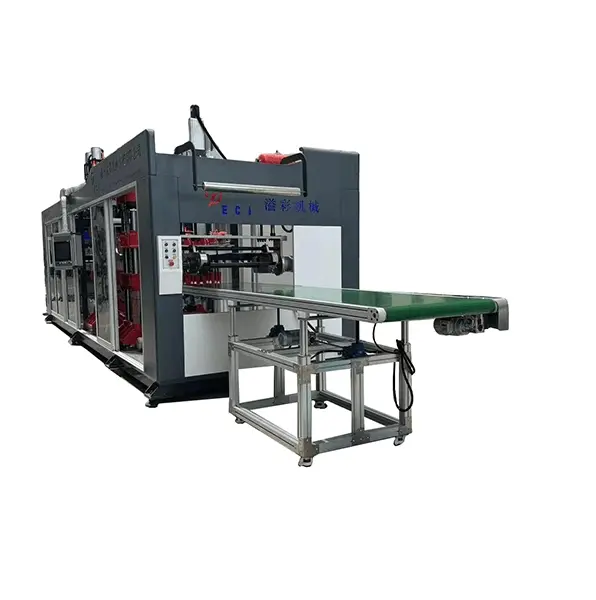

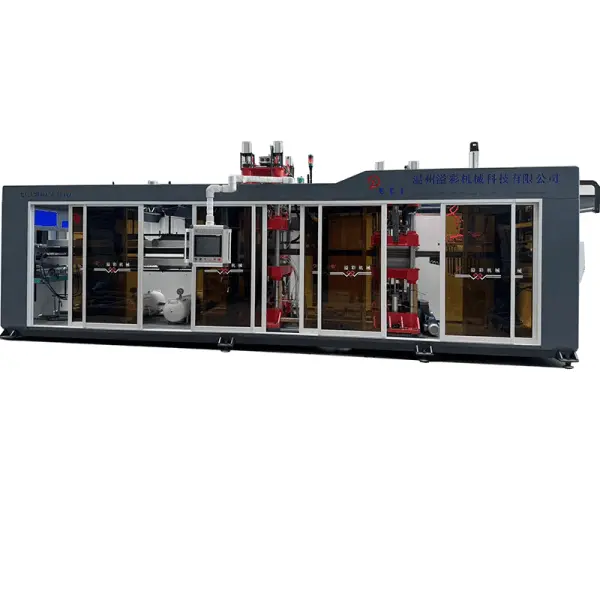

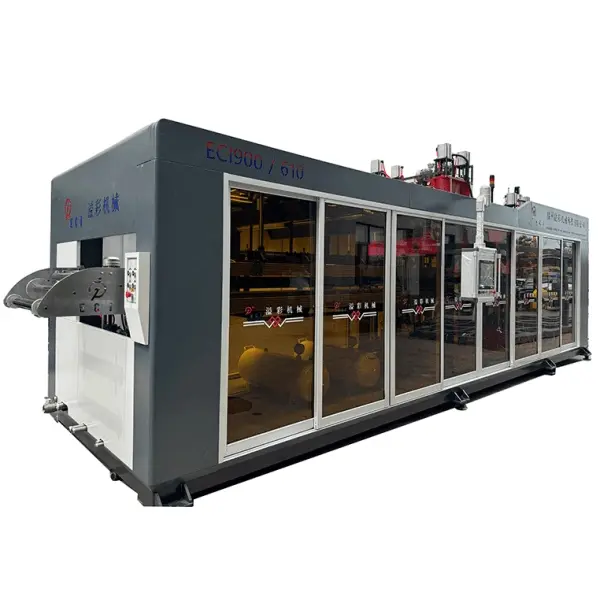

Adopts a full servo control system to achieve high-speed and high-precision operations. The multi-station design executes forming, cutting, and stacking concurrently on a single machine, greatly reducing labor cost and process time.
Highly adaptable to various shapes, sizes, and materials. Designed to be customized in accordance with special industry requirements, handling medical devices, food packaging, and electronics with ease.
Uses advanced thermoforming technology to output precise tray shapes. The full servo control accurately regulates temperature, pressure, and speed, maintaining consistent, high-standard molding for every cycle.
Features a simple, intuitive human-machine interface for smooth setting adjustments. Automated operations and built-in fault detection resolve running issues in real-time, improving overall production stability.
Built with an efficient heating device and energy-saving servo drive technology to decrease power usage and noise levels. Employs waste recovery and recycling methods to reduce ecological impact.

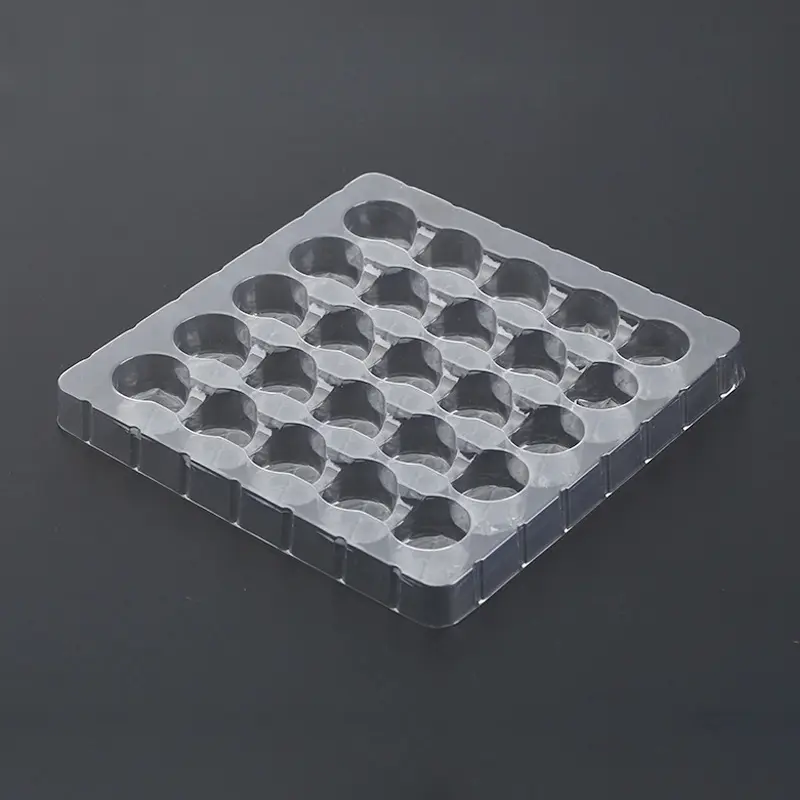

Widely applied in generating hygienic, customized trays for fruits, vegetables, meat, and processed foods.
Perfect for fabricating specialized trays that protect delicate medical instruments during shipping and storage.
Used to produce structural trays that safeguard sensitive electronic components and gadgets against damage.
Generates tough and secure transportation trays to streamline storage operations and shipping stability.
Easily adapts to creating functional, protective trays for home furniture parts and automotive components.
Ensure that the power supply and fuel gas supply systems function normally. Inspect security mechanisms, verify machine fasteners are secure, and prepare the necessary raw materials and molds.
Turn on the control panel to program settings like temperature, forming pressure, and speed. Maintain realistic values based on specific product materials.

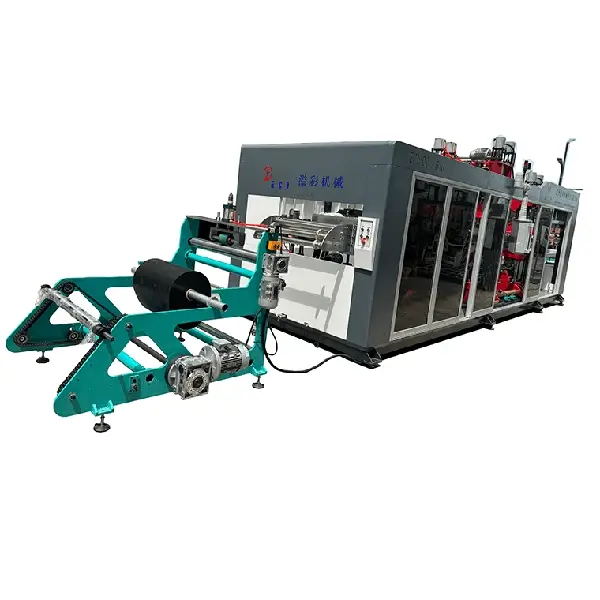

Load sheet roll materials into the feeding mechanism. Align and configure feed speeds to maintain a consistent and uninterrupted supply.
Trigger the start sequence. Monitor initial actions closely across all stations to ensure immediate setup criteria and alignment are correct.
Regularly check forming performance and check outputs for visual flaws. Optimize station settings dynamically to maintain structural uniformity.
Shutdown operations once target limits or timeframes are reached. Unload completed trays, run quality inspections, and clean workspace parts for the next run.
If faults occur during operation, immediately halt the machine. Follow manual instructions to diagnose parameters. If issues persist, contact maintenance specialists.
The S900/610 model supports various thermoplastic sheet materials including PP, PET, PS, PVC, and eco-friendly PLA.
By integrating high-speed servo motors, the machine coordinates tray forming, cutting, and stacking on a single platform. This saves cycle time and eliminates manual handling stages.
It offers a maximum forming area of 750mm * 610mm, a minimum forming area of 400mm * 300mm, and can handle molded product heights up to 120mm.
The machine utilizes positive and negative pressure molding, ensuring excellent detail replication, clean definition, and reliable product consistency.
Yes, it features an advanced eco-saving heater structure and specialized servo drivers designed to limit power consumption, while waste recovery functions minimize scrap generation.
